DESCRIPTION

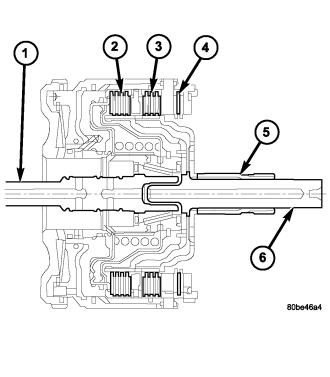

Three hydraulically applied input clutches are used to drive planetary components. The underdrive (2), overdrive (3), and reverse (4) clutches are considered input/driving clutches and are contained within the input clutch assembly. The input clutch assembly also contains:

• Input shaft
• Input hub
• Clutch retainer
• Underdrive piston
• Overdrive/reverse piston
• Overdrive hub
• Underdrive hub
