U1403-IMPLAUSIBLE FUEL VOLUME SIGNAL RECEIVED

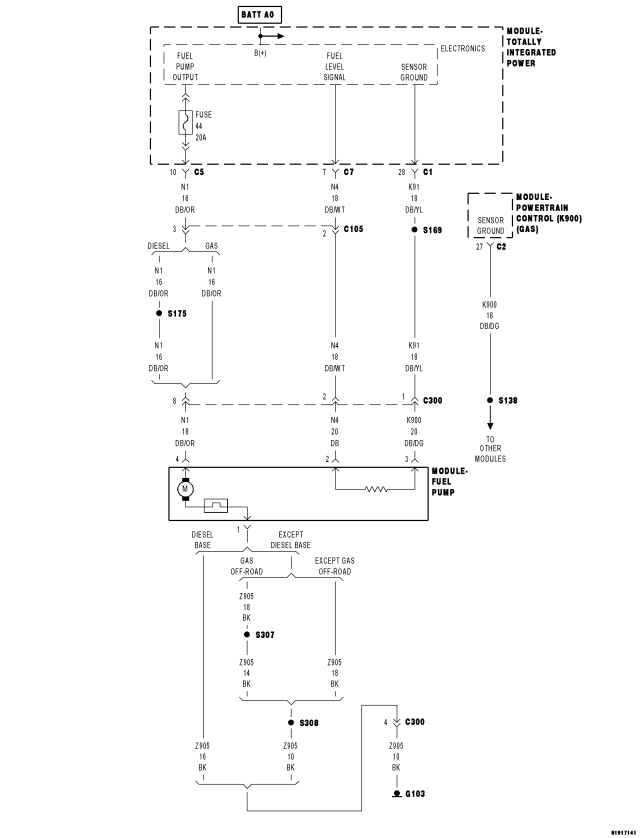

For a complete wiring diagram Refer to Section 8W.

When Monitored:
Ignition on.
Set Condition:
The fuel volume message the PCM is receiving is implausible. The circuit is continuously monitored. One Trip fault.

Possible Causes

CAN CIRCUIT OPEN OR SHORTED

TOTALLY INTEGRATED POWER MODULE

PCM

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

Theory of Operation

The Totally Integrated Power Module isn't receiving a fuel volume signal from the Fuel Level Sensor. The PCM received the Fuel Level signal from the TIPM over the CAN C Bus circuit. The signal the TIPM is sending over CAN C is implausible.

Diagnostic Test

1.ACTIVE DTC

Is the DTC Active at this time?

Yes

Go To 2

Refer to the INTERMITTENT CONDITION Diagnostic Procedure.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

2.CAN C HARDWARE DTCS ALSO ACTIVE

Are any CAN C Hardware related DTCs active at this time?

Yes

(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING) for the appropriate diagnostic procedures.
Perform BODY VERIFICATION TEST – VER 1.

Replace and program the Powertrain Control Module per Service Information.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
