REMOVAL


Two Door























Four Door

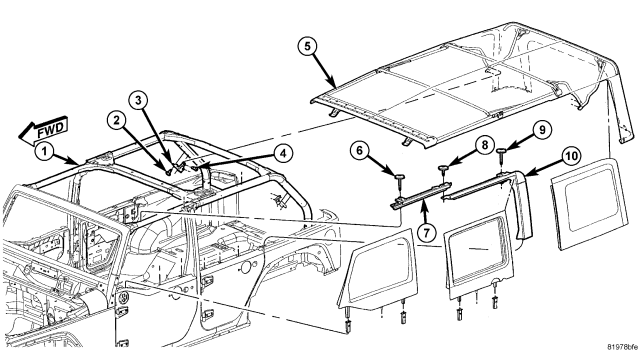

FOUR DOOR SHOWN, TWO DOOR SIMILAR


1 - SPORT BAR ASSEMBLY

2 - PIVOT BRACKET BOLTS

3 - PIVOT BRACKETS

4 - PIVOT KNUCKLE BOLTS 14 N·m (10.5 ft. lbs.)

5 - FOUR DOOR SOFT TOP

6 - DOOR RAIL THUMB SCREW

7 - DOOR RAIL RETAINER

8 - DOOR RAIL THUMB SCREW

9 - REAR DOOR RAIL THUMB SCREW

10 - REAR DOOR RAIL RETAINER
