BODY OPENING DIMENSIONS


Index

DESCRIPTION
  		 FIGURE

ENGINE BOX
  		 ENGINE BOX

WINDSHIELD OPENING
  		 WINDSHIELD OPENING

FRONT DOOR OPENING - JK 72 ONLY
  		 FRONT DOOR OPENING - JK 72 ONLY

FRONT DOOR OPENING - JK 74 ONLY
  		 FRONT DOOR OPENING - JK 74 ONLY

B-PILLAR CROSS/CAR - JK74 ONLY
  		 B-PILLAR CROSS/CAR - JK74 ONLY

REAR DOOR OPENING - JK74 ONLY
  		 REAR DOOR OPENING - JK74 ONLY

TAILGATE OPENING
  		 TAILGATE OPENING

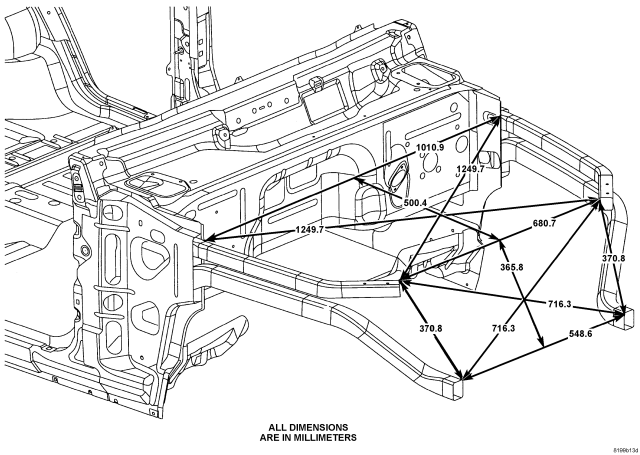

ENGINE BOX

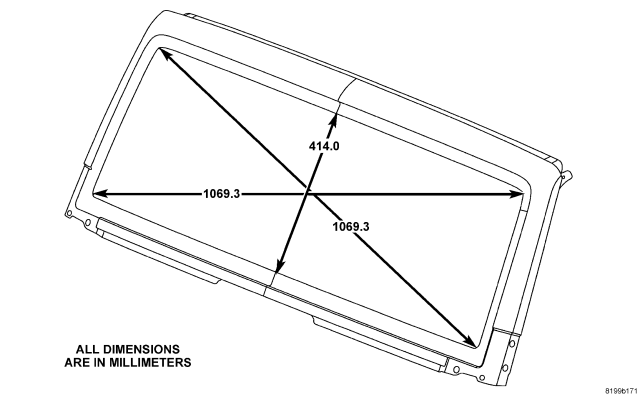

WINDSHIELD OPENING

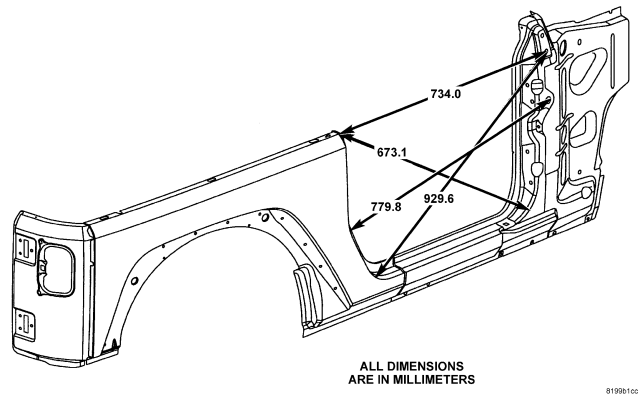

FRONT DOOR OPENING - JK 72 ONLY

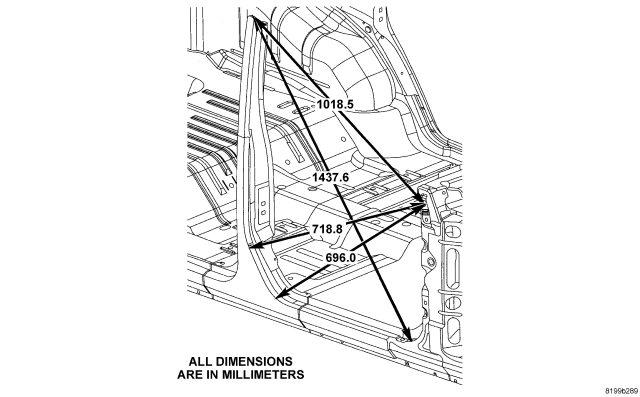

FRONT DOOR OPENING - JK 74 ONLY

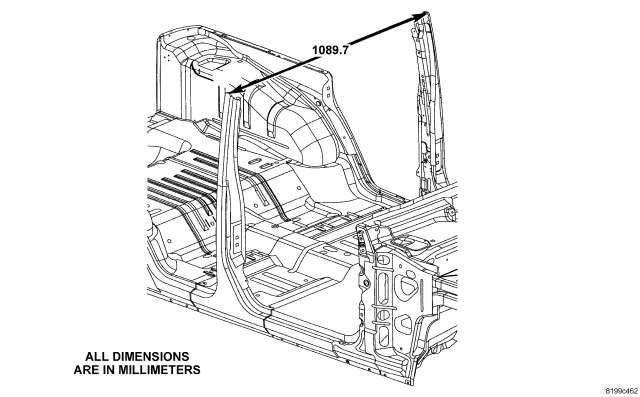

B-PILLAR CROSS/CAR - JK74 ONLY

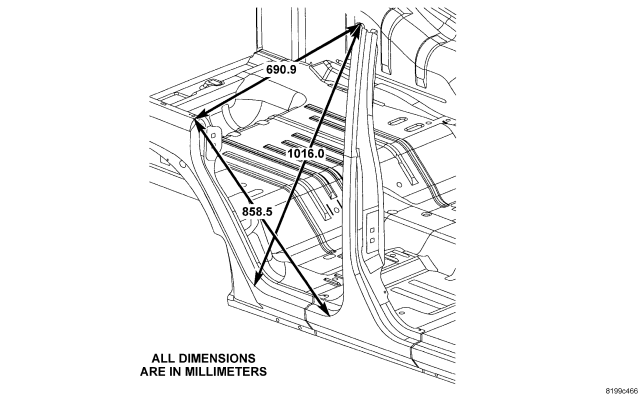

REAR DOOR OPENING - JK74 ONLY

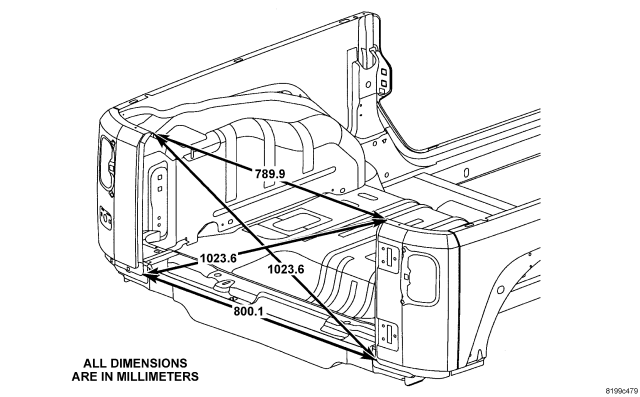

TAILGATE OPENING
