P0645-A/C CLUTCH RELAY CIRCUIT EXCESSIVE CURRENT

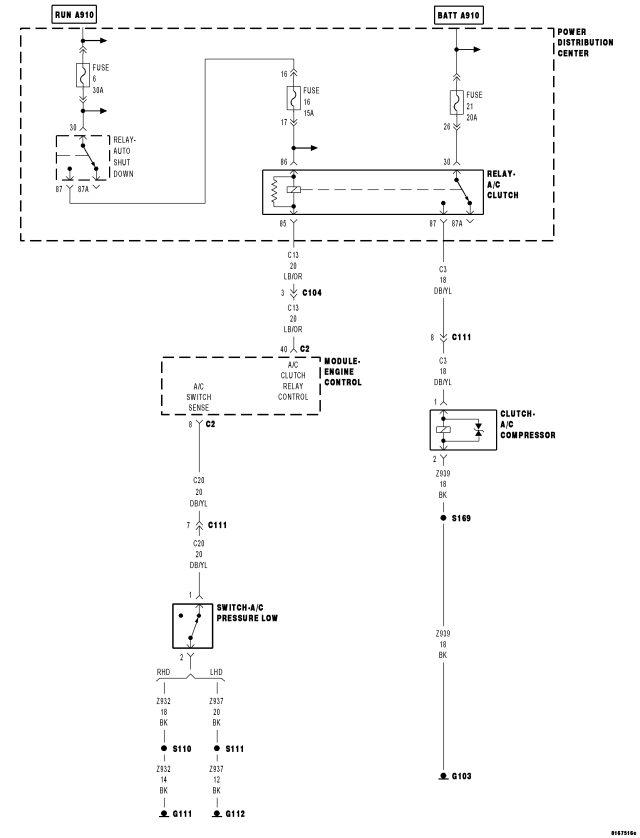

For a complete wiring diagram Refer to Section 8W

When Monitored:
With the ignition on and the ECM A/C Clutch Relay command on.
Set Condition:
The ECM detects excessive current on the A/C Clutch Relay Control circuit for 0.5 second.

Possible Causes

INTERMITTENT CONDITION

A/C CLUTCH RELAY

A/C CLUTCH RELAY CONTROL CIRCUIT SHORTED TO VOLTAGE

ECM

Diagnostic Test

1.A/C CLUTCH RELAY OPERATION

NOTE: If the ECM detects and stores a DTC, the ECM also stores the engine/vehicle operating conditions under which the DTC was set. Some of these conditions are displayed on the scan tool at the same time the DTC is displayed.

NOTE: Before erasing stored DTCs, record these conditions. Attempting to duplicate these conditions may assist when checking for an active DTC.

Is the A/C Clutch Relay clicking?

Yes

Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)

Go To2

2.A/C CLUTCH RELAY

Does the test light cycle on and off?

Yes

Replace the A/C Clutch Relay.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

Go To3

3.A/C CLUTCH RELAY CONTROL CIRCUIT SHORTED TO VOLTAGE

Is the voltage above 1.0 volt?

Yes

Repair the A/C Clutch Relay Control circuit for a short to voltage.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

Go To4

4.ECM

If there are no possible causes remaining, view repair.

Repair

Replace and program the Engine Control Module in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
