P1102-VISCOUS/CABIN HEATER RELAY SHORT CIRCUIT

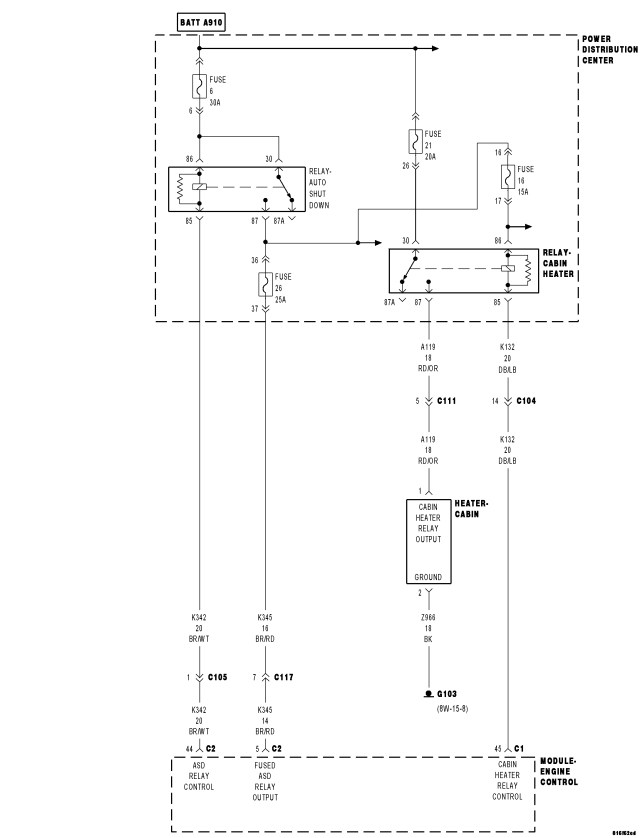

For a complete wiring diagram Refer to Section 8W

• When Monitored:

  With the ignition on and the ECM Viscous/Cabin Heater Relay command on.

• Set Condition:

  The ECM detects excessive current on the Viscous/Cabin Heater Relay Control circuit for 0.5 second.

Diagnostic Test

NOTE: If the ECM detects and stores a DTC, the ECM also stores the engine/vehicle operating conditions under which the DTC was set. Some of these conditions are displayed on the scan tool at the same time the DTC is displayed.

NOTE: Before erasing stored DTCs, record these conditions. Attempting to duplicate these conditions may assist when checking for an active DTC.

• Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)

• Go To2

• Go To3

• Repair the ASD Relay Output circuit for an open.
• Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

• Go To4

• Replace the Cabin Heater Relay.
• Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

• Repair the Cabin Heater Relay Control circuit for a short to voltage.
• Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

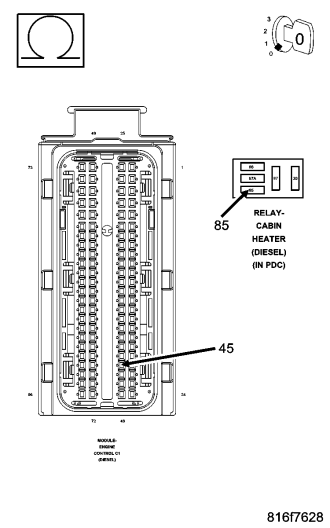

• Go To5

• Go To6

• Repair the Cabin Heater Relay Control circuit for a short to ground.
• Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

• Replace and program the Engine Control Module in accordance with the Service Information.
• Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

• Repair the Cabin Heater Relay Control circuit for an open.
• Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
