DESCRIPTION

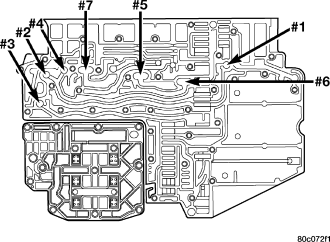

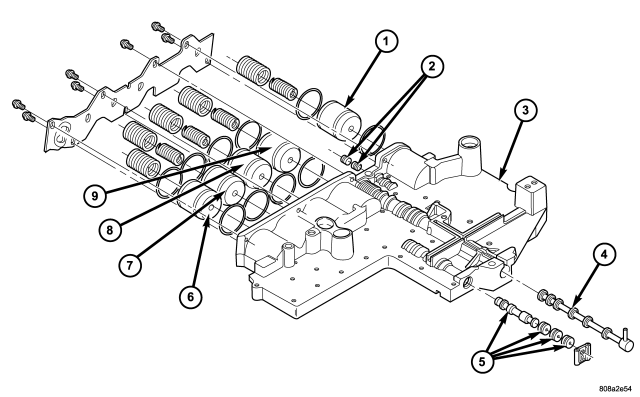

The valve body consists of a cast aluminum valve body, a separator plate, and a transfer plate. The valve body contains valves and check balls that control fluid delivery to the torque converter clutch, bands, and frictional clutches. The valve body contains the following components :

• Solenoid switch valve
• Manual valve
• Low/reverse shuttle valve
• 5 Accumulators

• 7 check balls
