DESCRIPTION

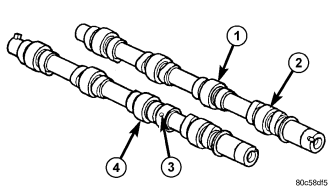

The camshafts (1) and (4) are made of gray cast iron with eight machined lobes and four bearing journals. Each camshaft has an alignment hole (2) and (3) toward the front of the camshaft that is used during base engine timing procedures (Refer to 9 - ENGINE/VALVE TIMING - STANDARD PROCEDURE).
