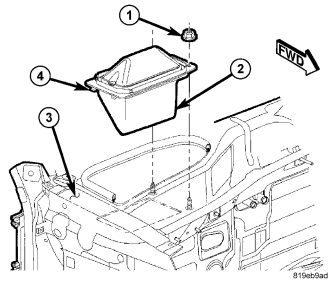

FRESH AIR INLET SCREEN

CAUTION: Replacement of the fresh air inlet screen is required once the screen is removed from the dash panel. Failure to follow this caution can result in a water leak within the vehicle and possible damage to the blower motor and resistor.

NOTE: LHD model shown. RHD model similar.

NOTE: Make sure that no foreign material or debris is present on the top of the dash panel in the engine compartment which could possibly block or restrict air flow through the fresh air inlet screen or cause rustling type noises when the blower motor is operated. Use a vacuum to remove any foreign material or debris as necessary.
