U1104–CAN C BUS CRC PERFORMANCE

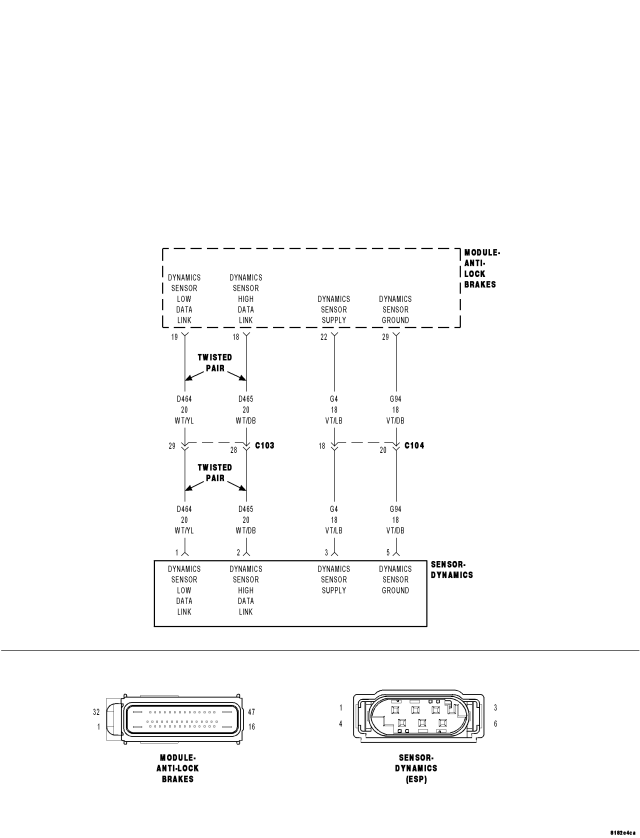

For a complete wiring diagram Refer to Section 8W.
- When Monitored:
With the ignition on.
- Set Condition:
If the Anti-Lock Brakes Module detects an invalid CAN message from the Dynamics Sensor.
| Possible Causes |
| WIRING HARNESS, TERMINAL, CONNECTOR DAMAGE |
| (D465) DYNAMICS SENSOR HIGH DATA LINK CIRCUIT SHORTED TO GROUND, VOLTAGE, OR OPEN |
| (D464) DYNAMICS SENSOR LOW DATA LINK CIRCUIT SHORTED TO GROUND, VOLTAGE, OR OPEN |
| DYNAMICS SENSOR INSTALLATION |
| DYNAMICS SENSOR |
Diagnostic Test
1.VERIFY DTC IS ACTIVEDoes this DTC reset?
Yes
- Go To 2
No
- The condition that caused the symptom is currently not present. Inspect the related wiring for a possible intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires.
- Refer to the ABS-INTERMITTENT CONDITION TEST. (Refer to 5 - BRAKES - DIAGNOSIS AND TESTING).
2.CHECK THE DYNAMICS SENSOR INSTALLATION
NOTE: Dynamics Sensor installation and mounting bolt torque is crucial for proper operation.
Were any problems found?
Yes
- Repair as necessary.
- Perform ABS VERIFICATION TEST. (Refer to 5 - BRAKES - STANDARD PROCEDURE).
No
- Go To 3
3.INSPECT RELATED WIRING HARNESS, TERMINALS, & CONNECTORS
Were any problems found?
Yes
- Repair as necessary.
- Perform ABS VERIFICATION TEST. (Refer to 5 - BRAKES - STANDARD PROCEDURE).
No
- Go To 4
4.CHECK THE (D465) DYNAMICS SENSOR HIGH DATA LINK CIRCUIT FOR A SHORT TO VOLTAGE
Is there any voltage present?
Yes
- Repair the (D465) Dynamics Sensor High Data Link circuit for a short to voltage.
- Perform ABS VERIFICATION TEST. (Refer to 5 - BRAKES - STANDARD PROCEDURE).
No
- Go To 5
5.CHECK THE (D465) DYNAMICS SENSOR HIGH DATA LINK CIRCUIT FOR A SHORT TO GROUND
Is the resistance below 5.0 ohms?
Yes
- Repair the (D465) Dynamics Sensor High Data Link circuit for a short to ground.
- Perform ABS VERIFICATION TEST. (Refer to 5 - BRAKES - STANDARD PROCEDURE).
No
- Go To 6
6.CHECK THE (D465) DYNAMICS SENSOR HIGH DATA LINK CIRCUIT FOR AN OPEN
Is the resistance below 5.0 ohms?
Yes
- Go To 7
No
- Repair the (D465) Dynamics Sensor High Data Link circuit for an open.
- Perform ABS VERIFICATION TEST. (Refer to 5 - BRAKES - STANDARD PROCEDURE).
7.CHECK THE (D464) DYNAMICS SENSOR LOW DATA LINK CIRCUIT FOR A SHORT TO VOLTAGE
Is there any voltage present?
Yes
- Repair the (D464) Dynamics Sensor Low Data Link circuit for a short to voltage.
- Perform ABS VERIFICATION TEST. (Refer to 5 - BRAKES - STANDARD PROCEDURE).
No
- Go To 8
8.CHECK THE (D464) DYNAMICS SENSOR LOW DATA LINK CIRCUIT FOR A SHORT TO GROUND
Is the resistance below 5.0 ohms?
Yes
- Repair the (D464) Dynamics Sensor Low Data Link circuit for a short to ground.
- Perform ABS VERIFICATION TEST. (Refer to 5 - BRAKES - STANDARD PROCEDURE).
No
- Go To 9
9.CHECK THE (D464) DYNAMICS SENSOR LOW DATA LINK CIRCUIT FOR AN OPEN
Is the resistance below 5.0 ohms?
Yes
- Replace the Dynamics Sensor in accordance with the Service Information.
- Perform ABS VERIFICATION TEST. (Refer to 5 - BRAKES - STANDARD PROCEDURE).
No
- Repair the (D464) Dynamics Sensor Low Data Link circuit for an open.
- Perform ABS VERIFICATION TEST. (Refer to 5 - BRAKES - STANDARD PROCEDURE).
