INSTALLATION
(Refer to 9 - ENGINE/ENGINE BLOCK/PISTON RINGS - INSTALLATION)

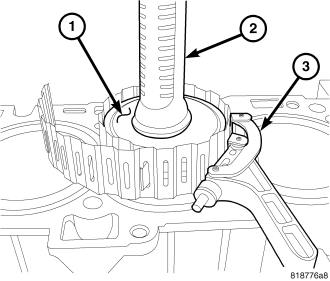

Be sure position of rings does not change during this operation

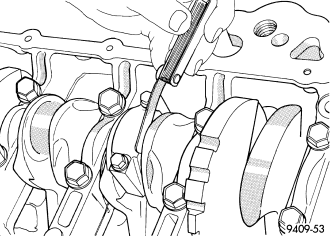

NOTE: There are three different size rod bearings, perform rod bearing selection procedure.
NOTE: The rod bearing sizes are indicated on the nose of the crankshaft.
NOTE: The connecting rod cap bolts should NOT be reused.
NEW
CAUTION: Do not use a torque wrench for the second step.
- Tighten the bolts to 20 N·m (15 ft. lbs.).
- Tighten the connecting rod bolts an additional 90°.
(Refer to 9 - ENGINE - SPECIFICATIONS)
(Refer to 9 - ENGINE/ENGINE BLOCK/LADDER FRAME - INSTALLATION)
(Refer to 9 - ENGINE/VALVE TIMING/BALANCE SHAFT CARRIER - INSTALLATION)
(Refer to 9 - ENGINE/LUBRICATION/OIL PAN - INSTALLATION)
(Refer to 9 - ENGINE/CYLINDER HEAD - INSTALLATION)

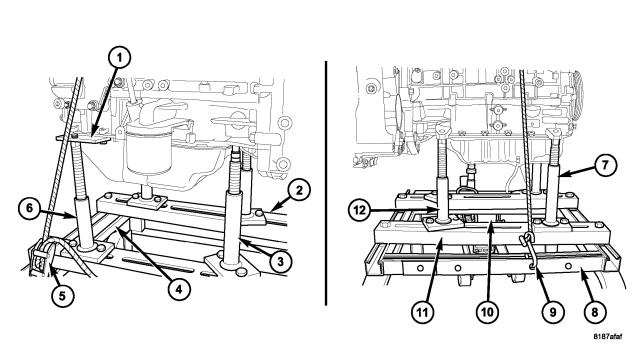

(Refer to 9 - ENGINE - INSTALLATION)
