CCN–B2339-HORN SWITCH STUCK

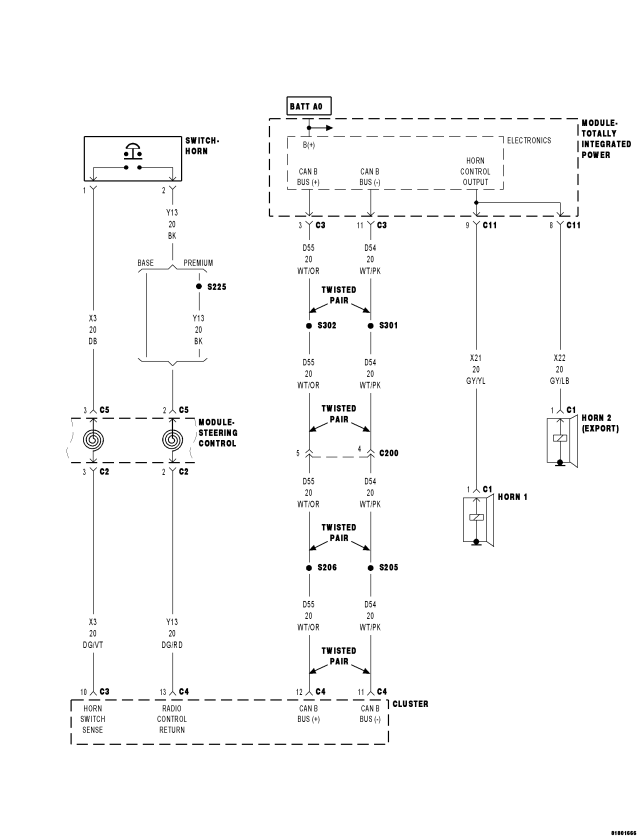

For a complete wiring diagram Refer to Section 8W.

• When Monitored:

  Continuously.

• Set Condition:

  The Cluster senses that the Horn switch is in the Set position for greater than 50 seconds.

Diagnostic Test

• Go To 2

• Check for an intermittent condition by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken wires. Also, inspect the related connectors for broken, bent, corroded, or contaminated terminals.
• Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)

WARNING: Turn the ignition off, disconnect the battery and wait two minutes before proceeding.

WARNING: Do not place an intact undeployed airbag face down on a hard surface, the airbag will propel into the air if accidentally deployed, and could results in serious or fatal injury.

NOTE: Before proceeding, thoroughly inspect the wiring harness and connectors between the Horn Switch for a short to ground or to any other circuit.

• Replace the Horn Switch in accordance with the Service Information.

• Go to 3

• Go To 4

• Replace the Steering Control Module in accordance with the Service Information.
• Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)

• Repair the (X3) Horn Switch circuit for a short to ground.
• Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)

• Replace the Cluster in accordance with the Service Information.
• Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
