DESCRIPTION





WARNING: Keep fingers and other body parts out of sunroof opening at all times.

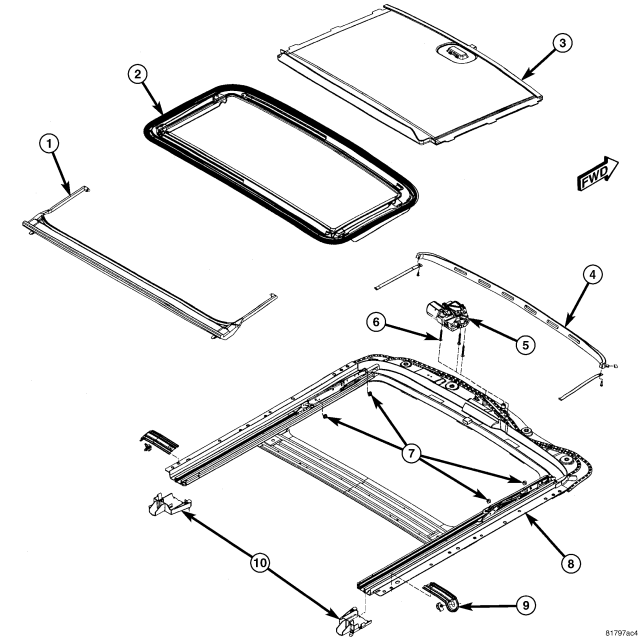

The sunroof features a power sliding glass panel and a sunshade which can be manually positioned anywhere along its travel, rearward of glass panel front edge.

The sunroof is electrically operated from two switches located on the windshield header, between the map lamp. To operate the sunroof the ignition switch must be in either the Accessory or On/Run position. One switch (vent) is a push button type and opens the sunroof to the vent position only. The other switch (open/close) is a rocker type for opening and closing the sunroof. Pressing and releasing the open button once the sunroof will express open and the wind deflector will raise. If the button is pressed a second time the sunroof will stop in that position. Pressing and holding the close button will close the sunroof. If the close button is released the sunroof will stop in that position. Also, by pressing the close button the sunroof will close automatically.


SUNROOF OPERATION INSTRUCTIONS


SWITCH INPUTS

  OPEN
  		 CLOSE
  		 VENT

FULL VENT
  		 1. Push and hold switch until glass stops in flush closed position glass will then express open
  		 1. Push and hold switch until glass stops in flush closed position.
  		 No action

2. Press switch for less than 0.65 seconds for express to full open.
  		 2. Press switch for less than 0.65 seconds for express to flush closed.

VENT RANGE
  		 1. Push and hold switch until glass passes through flush closed position. Glass will then open
  		 1. Push and hold switch until glass stops in flush closed position.
  		 1. Push and hold switch until glass stops in full vent position.

2. Press switch for less than 0.65 seconds for express to full open.
  		 2. Press switch for less than 0.65 seconds for express to flush closed.
  		 2. Press switch for less than 0.65 seconds for express to full vent.

FLUSH
  		 1. Press switch for less than 0.65 seconds for express to full open.
  		 No action
  		 1. Press and hold switch. Glass will travel through flush closed to full vent. Glass will stop when switch is released or when fully vented.

2. Press switch for more than 0.65 seconds and glass will stop when switch is released
  		   2. Press switch for less than 0.65 seconds for express to full vent.

FULL OPEN
  		 No action
  		 1. Press and hold switch until glass stops in flush closed position or anywhere in between.
  		 1. Press and hold switch. Glass will travel through flush closed to full vent. Glass will stop when switch is released.

  2. Press switch for less than 0.65 seconds for express to flush closed.
  		 2. Press switch for less than 0.65 seconds for express to full vent.
