SCHEMATICS AND DIAGRAMS

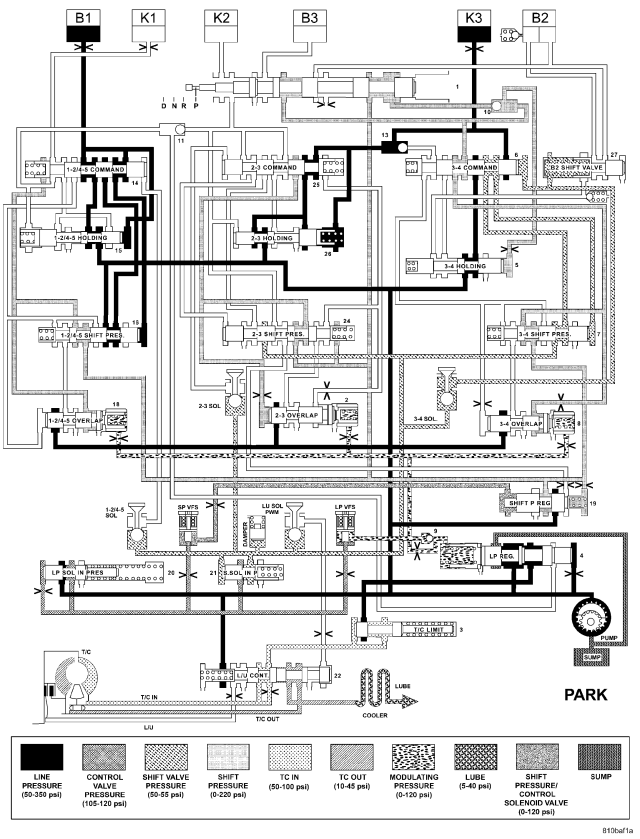

| HYDRAULIC FLOW IN PARK |

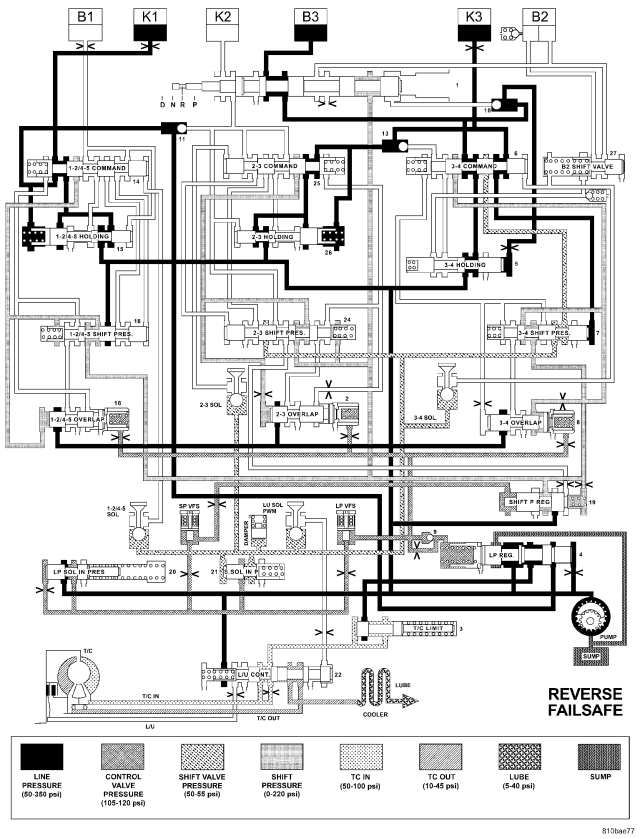

| HYDRAULIC FLOW IN REVERSE - FAILSAFE |

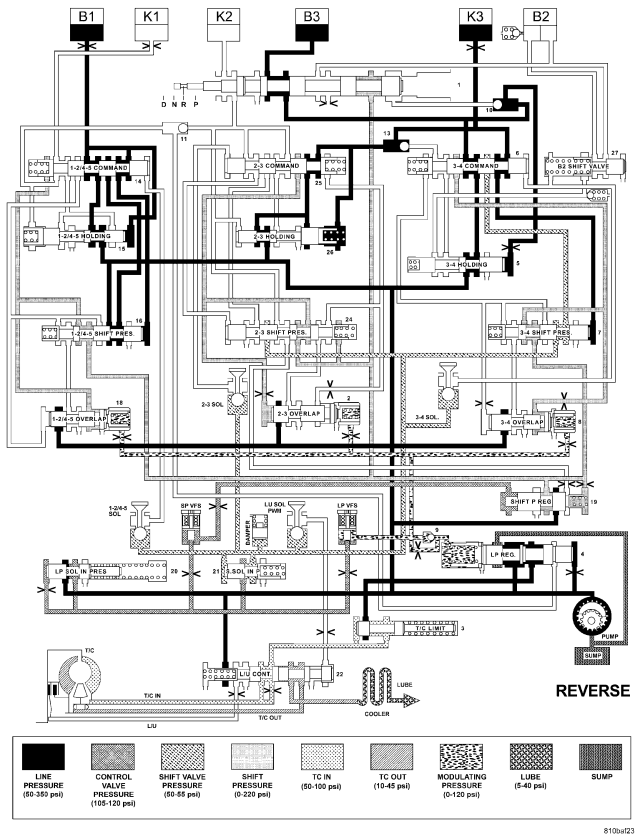

| HYDRAULIC FLOW IN REVERSE |

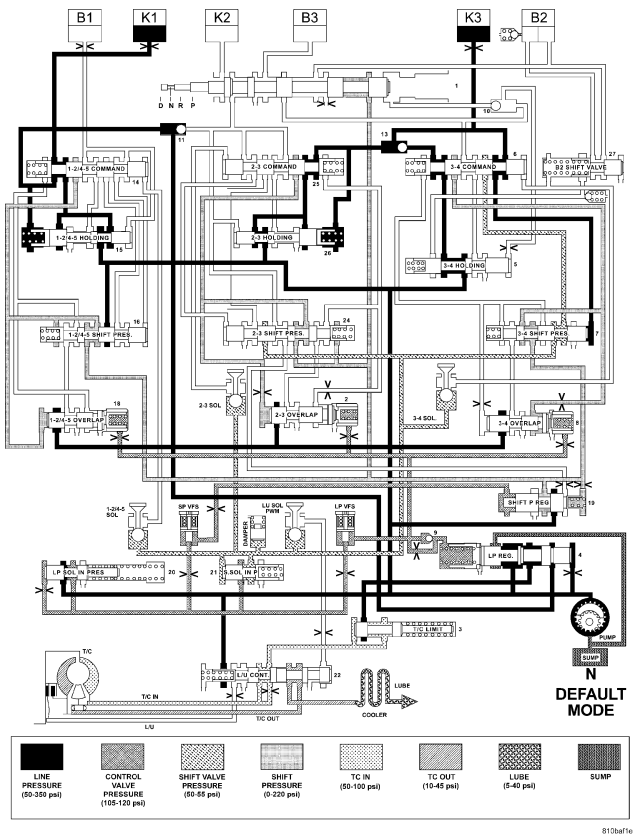

| HYDRAULIC FLOW IN NEUTRAL - DEFAULT |

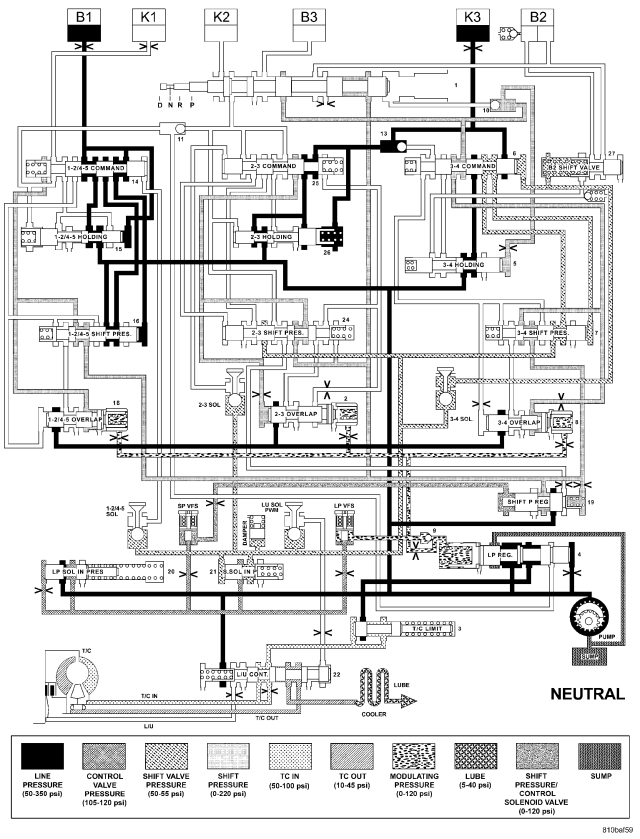

| HYDRAULIC FLOW IN NEUTRAL |

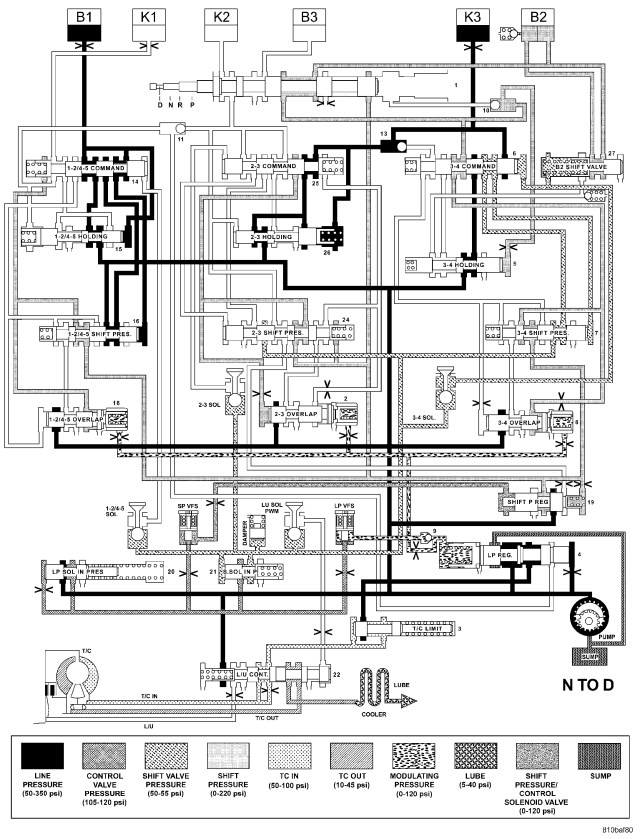

| HYDRAULIC FLOW IN NEUTRAL TO DRIVE TRANSITION |

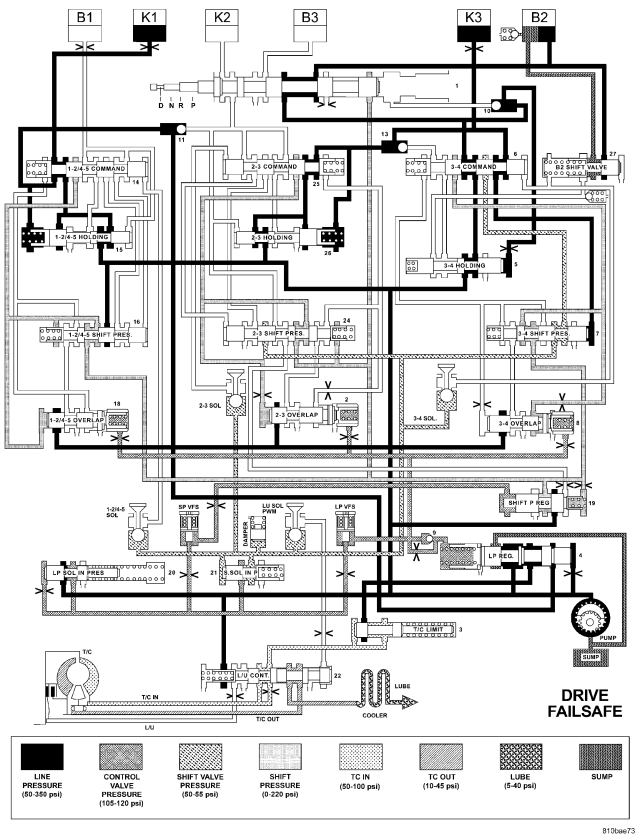

| HYDRAULIC FLOW IN DRIVE - FAILSAFE |

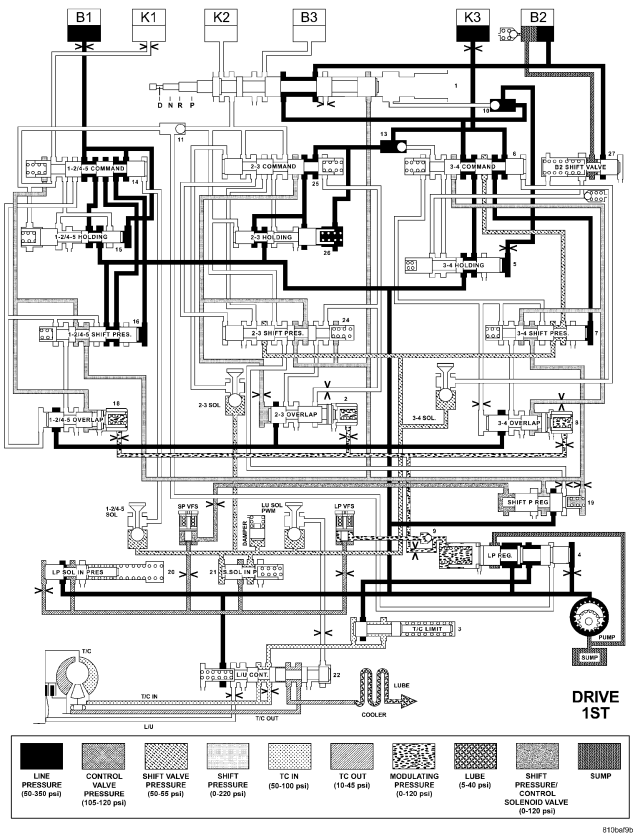

| HYDRAULIC FLOW IN DRIVE - FIRST GEAR |

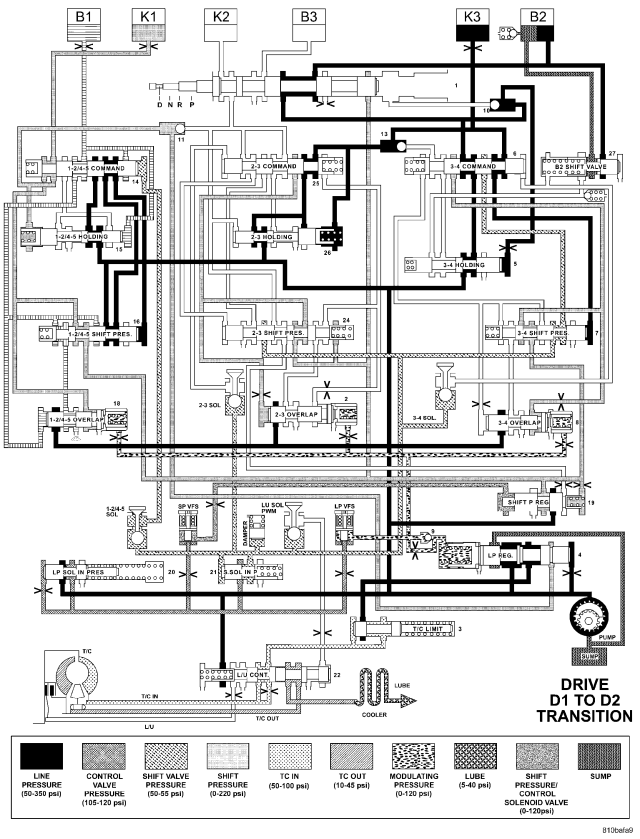

| HYDRAULIC FLOW IN DRIVE - FIRST TO SECOND GEAR TRANSITION |

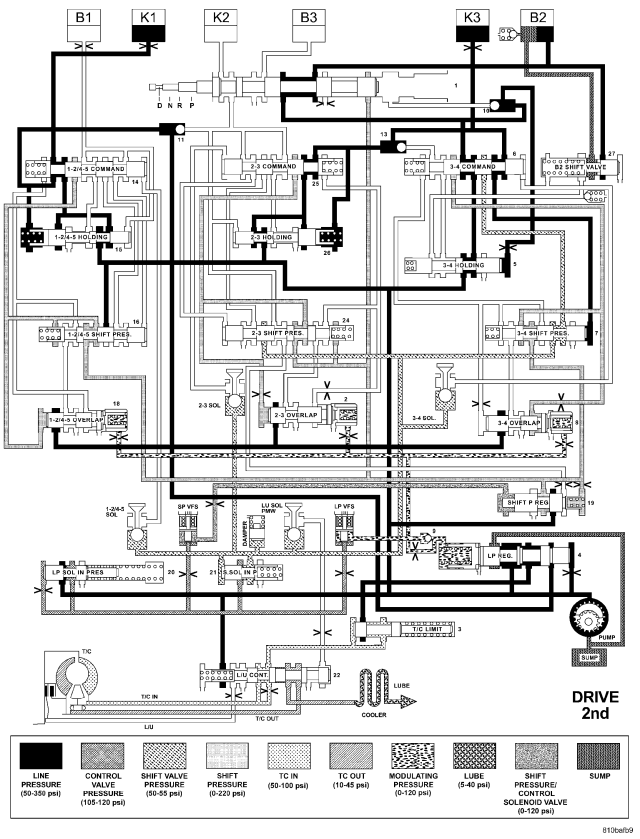

| HYDRAULIC FLOW IN DRIVE - SECOND GEAR |

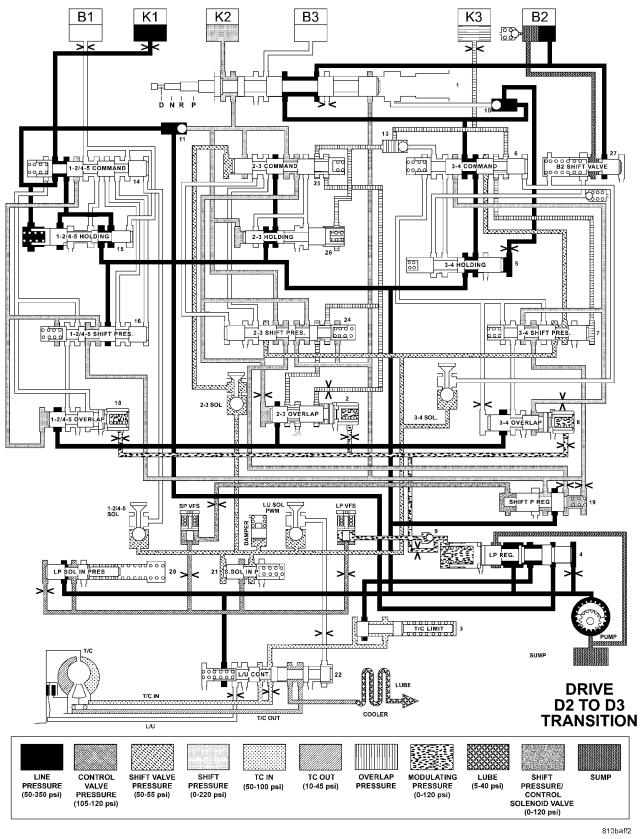

| HYDRAULIC FLOW IN DRIVE - SECOND TO THIRD GEAR TRANSITION |

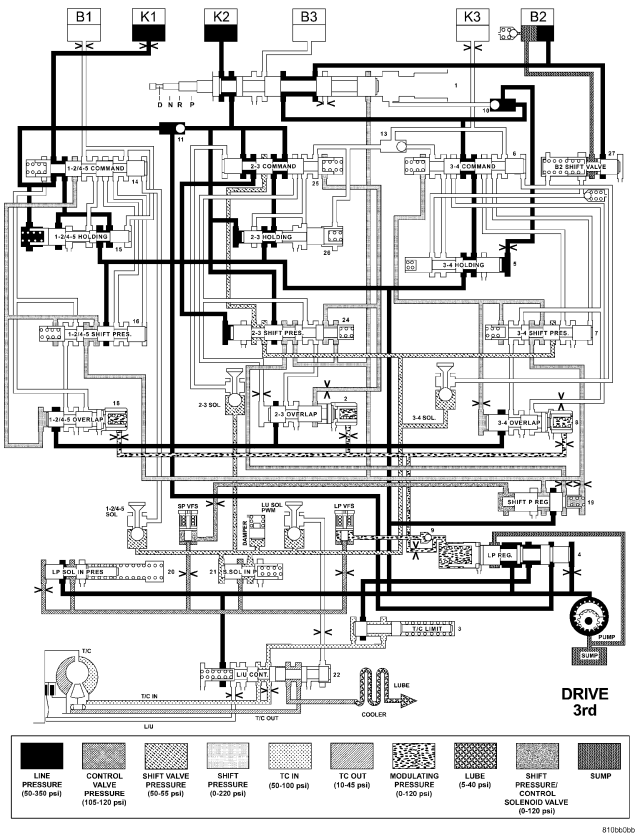

| HYDRAULIC FLOW IN DRIVE - THIRD GEAR |

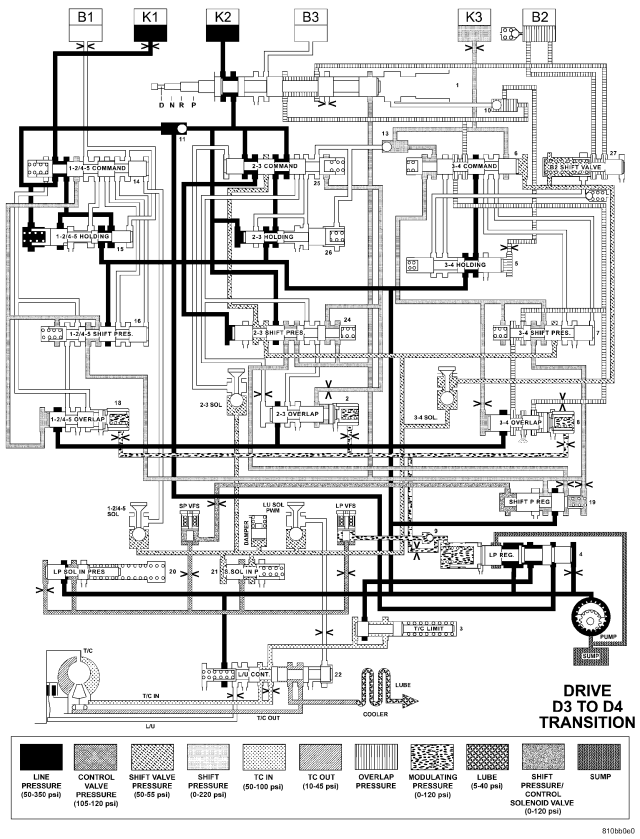

| HYDRAULIC FLOW IN DRIVE - THIRD TO FOURTH GEAR TRANSITION |

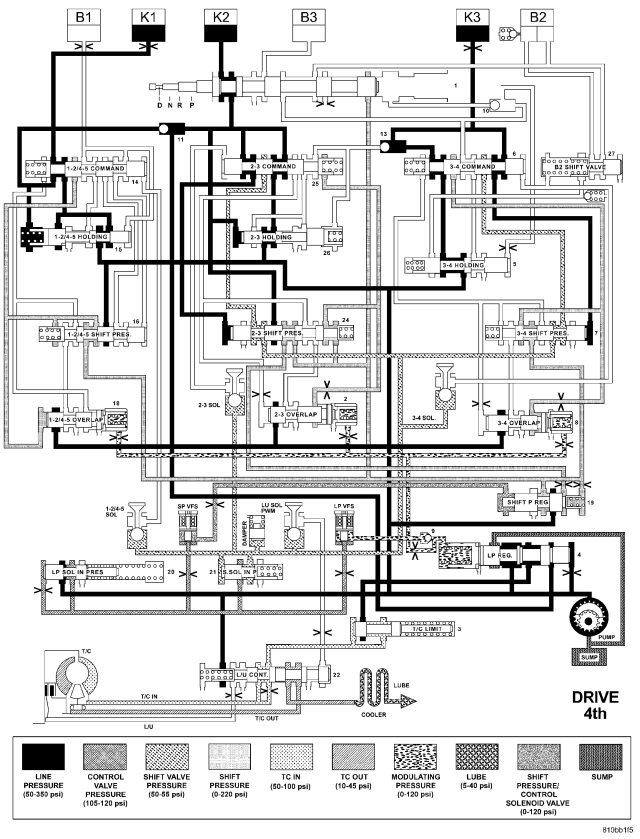

| HYDRAULIC FLOW IN DRIVE - FOURTH GEAR |

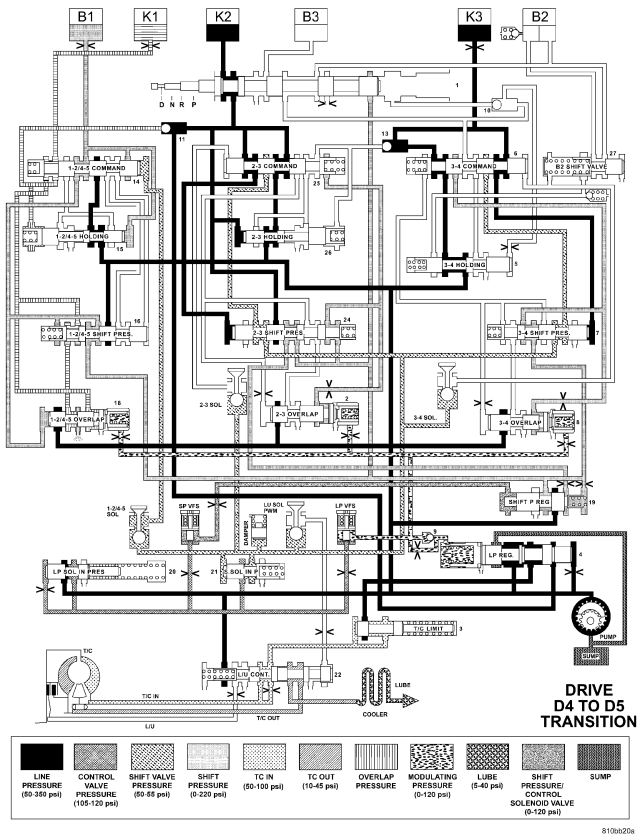

| HYDRAULIC FLOW IN DRIVE - FOURTH TO FIFTH GEAR TRANSITION |

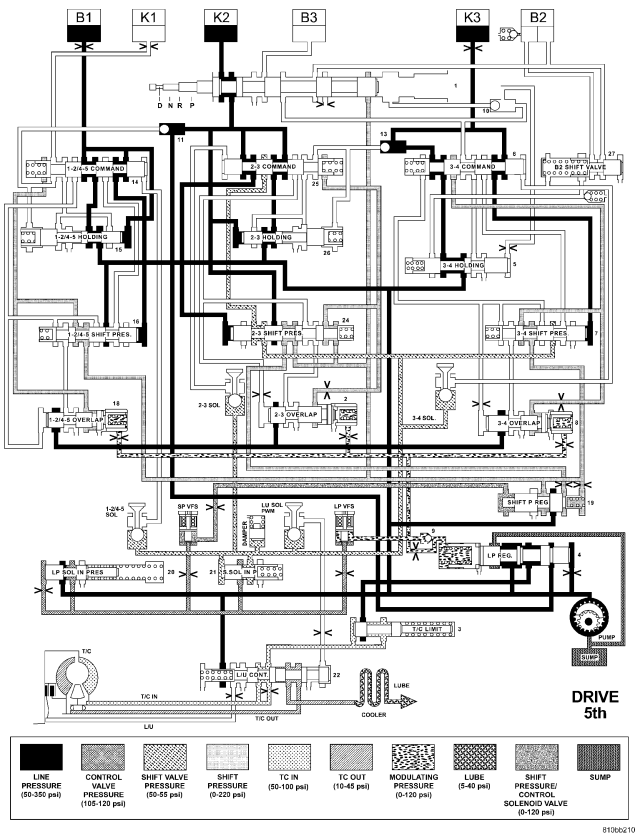

| HYDRAULIC FLOW IN DRIVE - FIFTH GEAR |

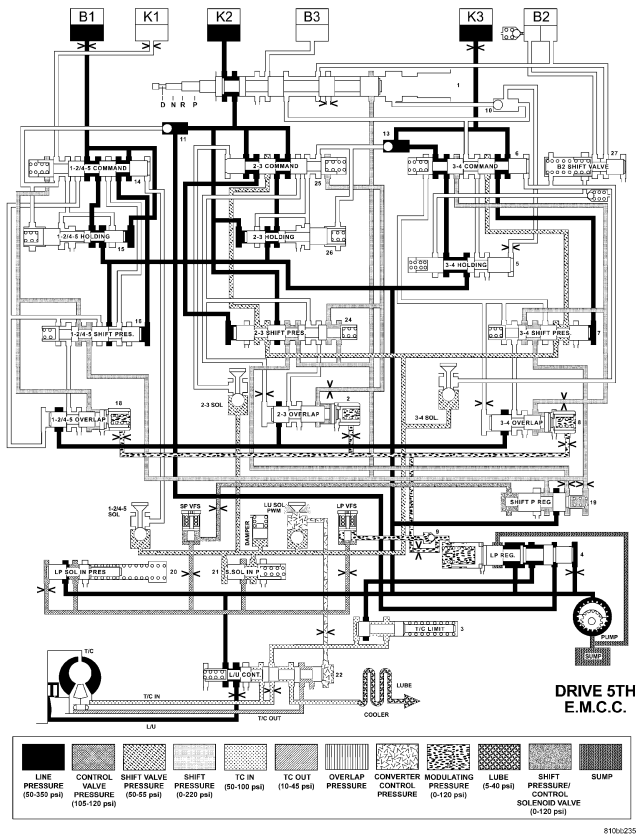

| HYDRAULIC FLOW IN DRIVE - FIFTH GEAR - EMCC |

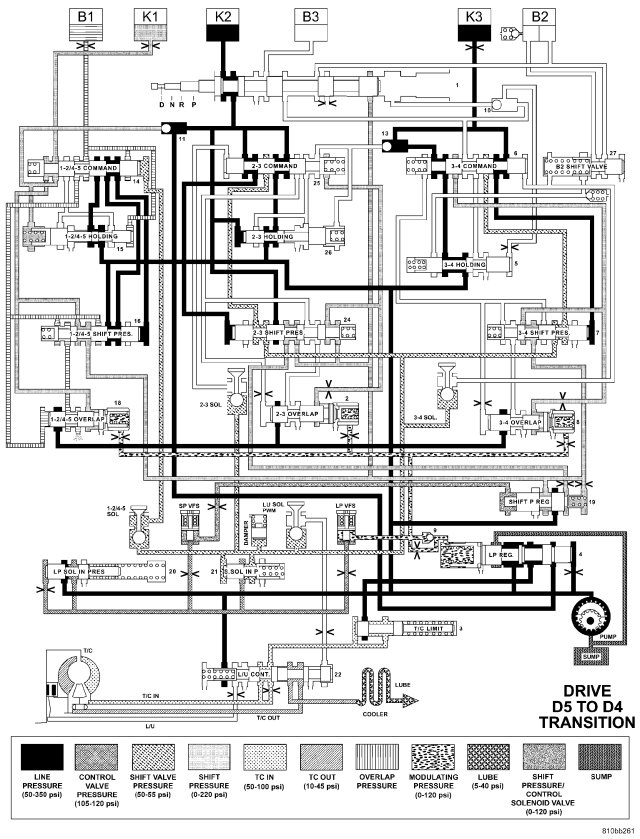

| HYDRAULIC FLOW IN DRIVE - FIFTH TO FOURTH GEAR TRANSITION |

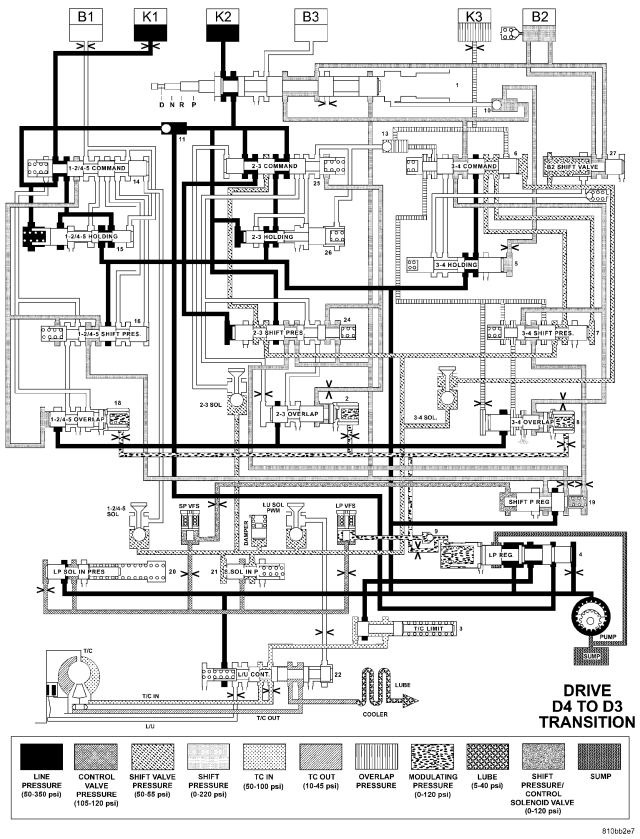

| HYDRAULIC FLOW IN DRIVE - FOURTH TO THIRD GEAR TRANSITION |

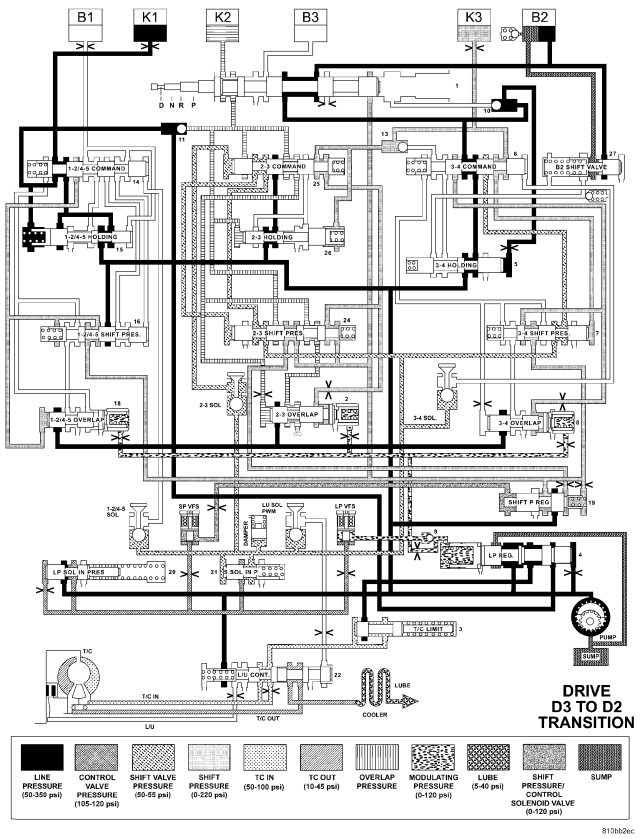

| HYDRAULIC FLOW IN DRIVE - THIRD TO SECOND GEAR TRANSITION |

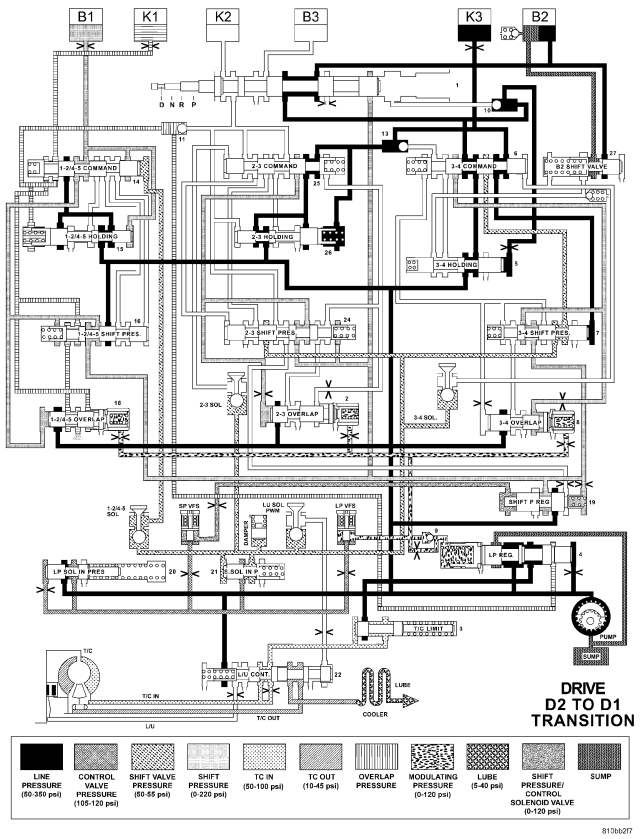

| HYDRAULIC FLOW IN DRIVE - SECOND TO FIRST GEAR TRANSITION |
