B212A-PTS DISPLAY SUPPLY VOLTAGE LOW

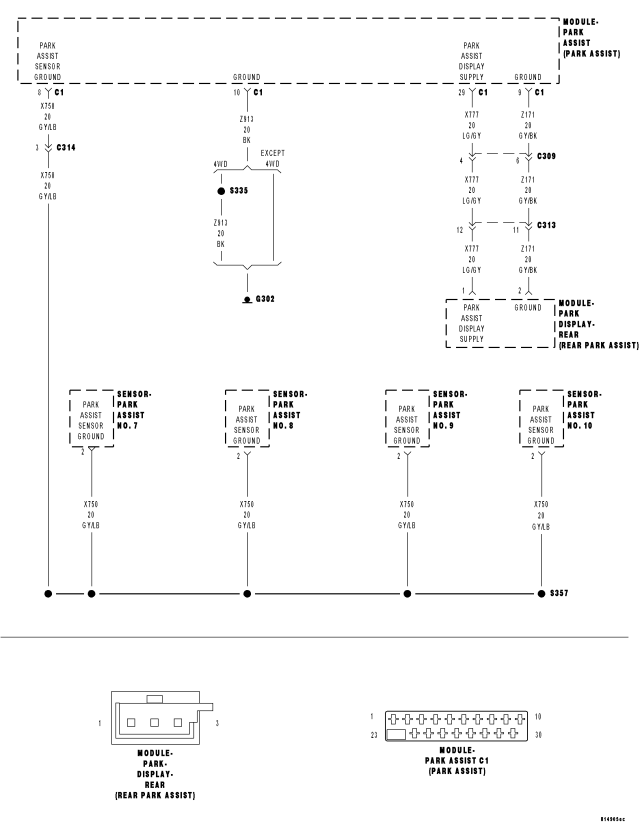

For a complete wiring diagram Refer to Section 8W.

• When Monitored:

  While the vehicle is in reverse for speeds less than 16km/h.

• Set Condition:

  Park Assist Sensor Display voltage less than 8.0 volts.

Diagnostic Test

• Go To 2

• The condition that caused this code to set is not present at this time. Check for an intermittent condition by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken wires. Also inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated terminals.
• Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)

• Go To 3

• Replace the Park Assist Module in accordance with the service information.
• Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)

• Repair the (X777) Park Assist Display Supply circuit for a short to the (Z171) Park Assist Display Ground circuit.
• Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)

• Go To 4

• Repair the (X777) Park Assist Display Supply circuit for a short to the (Z913) Park Assist Module Ground circuit.
• Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)

• Go To 5

• Repair the (X777) Park Assist Display Supply circuit for a short to the (X750) Park Assist Sensor Ground circuit.
• Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)

• Go To 6

• Repair the (X777) Park Assist Display Supply circuit for a short to ground.
• Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)

• Replace the Park Assist Display in accordance with the service information.
• Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
