B1661-FRONT FOG LAMP CONTROL CIRCUIT OPEN

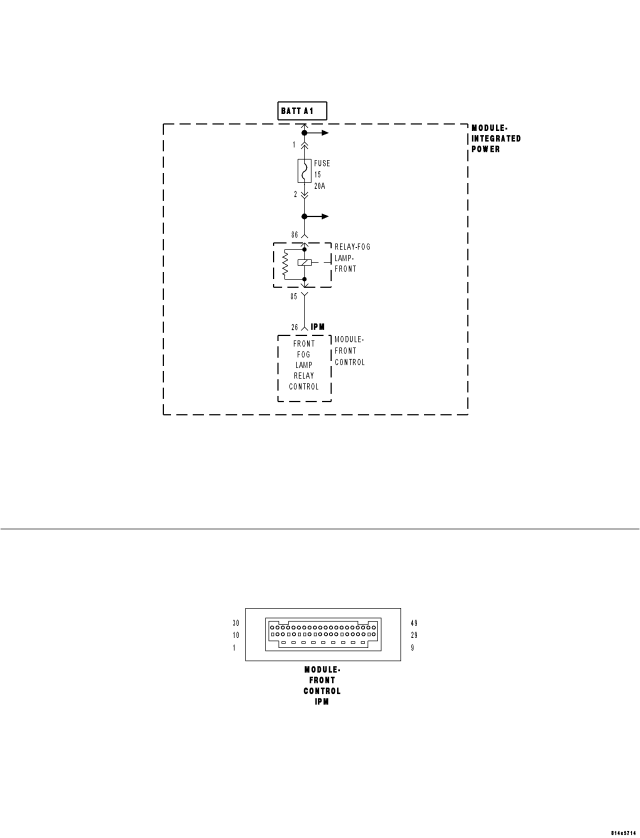

For a complete wiring diagram Refer to Section 8W.
- When Monitored:
- With the Fog Lamps activated.
- Set Condition:
- When the IPM detects an OPEN condition.
| Possible Causes |
| INTEGRATED POWER MODULE |
Diagnostic Test
1.INTEGRATED POWER MODULENOTE: Prior to testing, check and inspect that all applicable fuses are functional and working properly.
Does the Scan Tool read: B1661-FRONT FOG LAMP CONTROL CIRCUIT OPEN?
Yes
- Replace the Integrated Power Module in accordance with the service information.
- Perform the BODY VERIFICATION TEST — VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
No
- Test complete.
- Perform the BODY VERIFICATION TEST — VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
