B1D5D–ADJUSTABLE PEDAL SWITCH CIRCUIT STUCK REARWARD

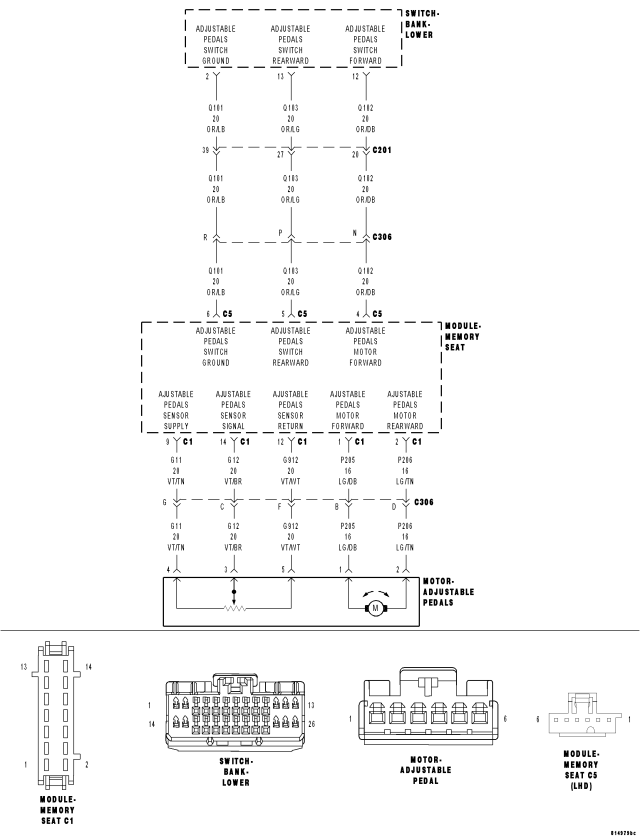

For a complete wiring diagram Refer to Section 8W.


  • When Monitored:

    The Adjustable Pedals Switch is in active operation.

  • Set Condition:

    The Memory Seat Module detects that the Adjustable Pedals Switch has been activated for a time period of more than 50 seconds.


Possible Causes

CONNECTOR/TERMINAL DAMAGE

(Q103) ADJUSTABLE PEDALS SWITCH REARWARD CIRCUIT SHORTED TO GROUND

ADJUSTABLE PEDALS SWITCH - INTERNAL FAULT

MEMORY SEAT MODULE - INTERNAL FAULT




Diagnostic Test

1.CHECK FOR DTC B1D5D–ADJUSTABLE PEDAL SWITCH CIRCUIT STUCK REARWARD

NOTE: This DTC must be active for the results of this test to be valid.








Does the scan tool display: B1D5D–ADJUSTABLE PEDAL SWITCH CIRCUIT STUCK REARWARD?

Yes
  • Go To 2


No
  • The condition that caused the symptom is currently not present. Inspect the related wiring for a possible intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires.
  • Refer to the APS-INTERMITTENT CONDITION TEST. (Refer to 5 - BRAKES/ELECTRICAL - DIAGNOSIS AND TESTING).

2.CHECK CONNECTOR/TERMINAL FOR DAMAGE

NOTE: Check all terminals for broken, bent, pushed out, or corroded terminals.





Is the connectors/terminals damaged?

Yes


No
  • Go To 3

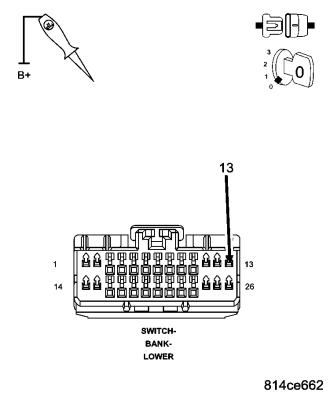

3.CHECK (Q103) ADJUSTABLE PEDALS SWITCH REARWARD CIRCUIT FOR A SHORT TO GROUND







Does the test light illuminate brightly?

Yes


No
  • Go To 4

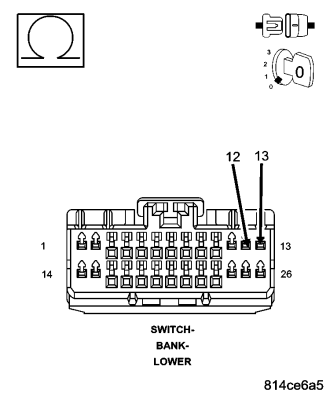

4.CHECK ADJUSTABLE PEDALS SWITCH SHORTED





Is the resistance below 5.0 ohms?

Yes


No
