SMARTBEAM® CALIBRATION

SmartBeam® calibration must be performed after the inside rear view mirror is replaced with a new unit, and may also be required following any rear view mirror mounting button or windshield replacement procedure. The calibration procedure ensures that the field of vision for the SmartBeam® imager is aimed at the proper path directly ahead of the vehicle. New and unused replacement SmartBeam® units are shipped in calibration mode, which will be indicated by a slow (once-per-second) continuously flashing electrochromic mirror Light Emitting Diode (LED) while the ignition switch is in the ON position. Complaints of poor or improper system performance following mirror mounting button or windshield replacement indicate the need for SmartBeam® calibration.

VEHICLE PREPARATION FOR SMARTBEAM® CALIBRATION

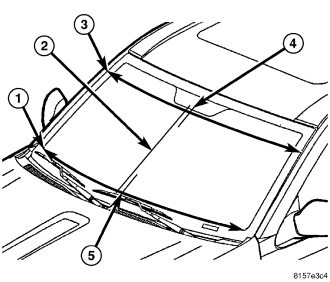

MARK IMAGER CENTERLINE ON WINDSHIELD

NOTE: Be certain to clean the centerline marks from the area of the glass in front of the imager lens before attempting to calibrate the SmartBeam® unit.

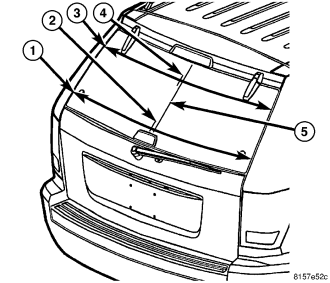

MARK IMAGER CENTERLINE ON LIFTGATE GLASS

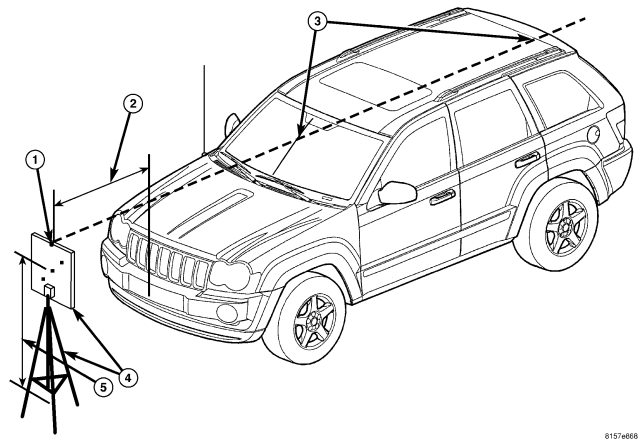

SET UP AIM BOARD AND TRIPOD

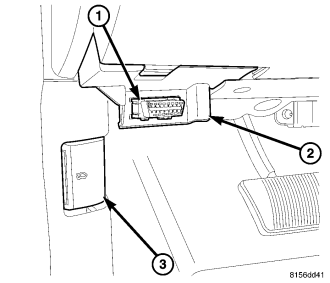

CALIBRATION PROCEDURE
