B2320-FRONT/REAR WASHER MOTOR CONTROL CIRCUIT HIGH

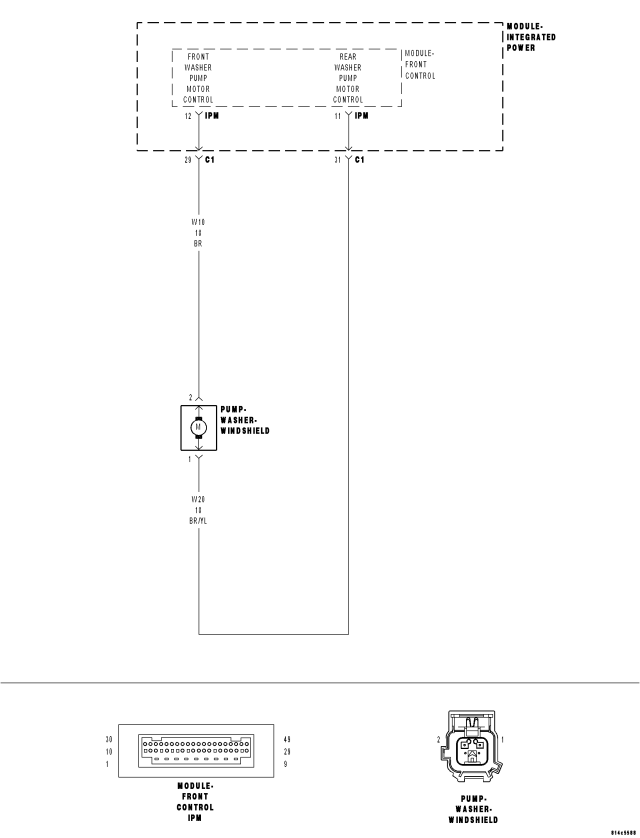

For a complete wiring diagram Refer to Section 8W.
- When Monitored:
With the ignition on.
- Set Condition:
The FCM detects an open condition.
| Possible Causes |
| (W10) WASHER PUMP MOTOR CONTROL CIRCUIT SHORT TO VOLTAGE |
| (W20) WASHER PUMP MOTOR CONTROL CIRCUIT
SHORT TO VOLTAGE |
| FRONT CONTROL MODULE |
Diagnostic Test
1.INTERMITTENT CONDITIONDoes the Scan Tool read: B2320-FRONT/REAR WASHER MOTOR CONTROL CIRCUIT HIGH?
Yes
- Go To 2
No
- The condition that caused the symptom is currently not present. Inspect the related wiring for a possible intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires.
- Perform the BODY VERIFICATION TEST — VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)

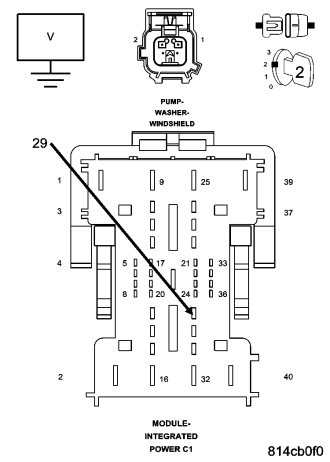

2.(W10) WASHER PUMP MOTOR CONTROL CIRCUIT SHORT TO VOLTAGE
Is the voltage above 5.0 volts?
Yes
- Repair the (W10) Washer Pump Motor Control circuit for a short to voltage.
- Perform the BODY VERIFICATION TEST — VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
No
- Go To 3

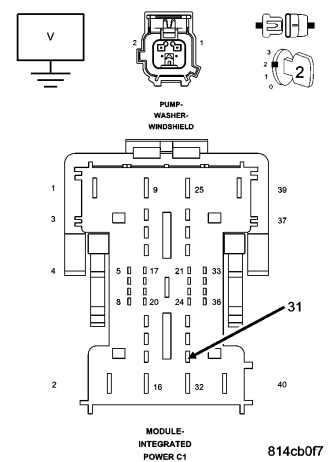

3.(W20) WASHER PUMP MOTOR CONTROL CIRCUIT SHORT TO VOLTAGE
Is the voltage above 5.0 volts?
Yes
- Repair the (W20) Washer Pump Motor Control circuit for a short to voltage.
- Perform the BODY VERIFICATION TEST — VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
No
- Replace the Front Control Module in accordance with the service information.
- Perform the BODY VERIFICATION TEST — VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
