B2328-WASHER FLUID LEVEL SENSOR INPUT CIRCUIT HIGH

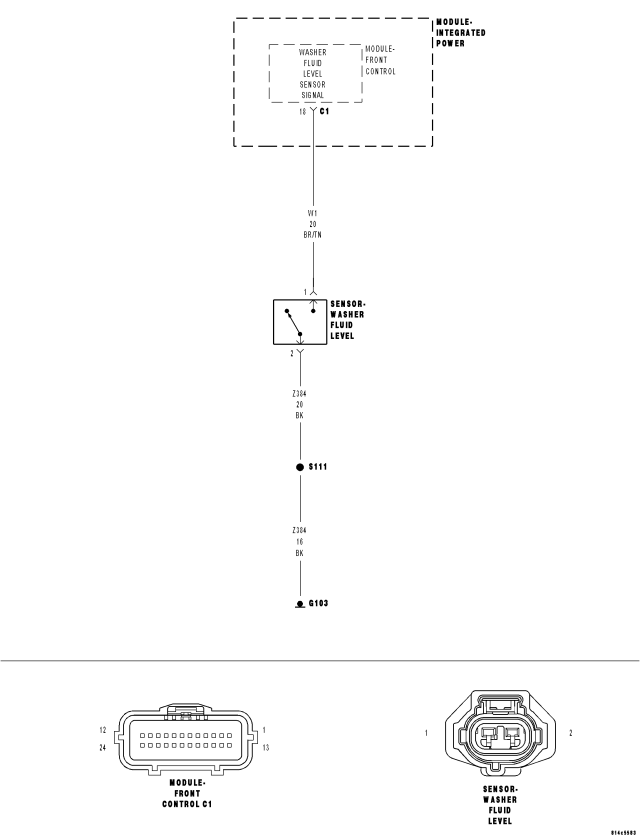

For a complete wiring diagram Refer to Section 8W.
- When Monitored:
With the ignition on.
- Set Condition:
When the FCM detects a high condition.
| Possible Causes |
| (W1) WASHER FLUID LEVEL SENSOR SIGNAL CIRCUIT SHORT TO VOLTAGE |
| FRONT CONTROL MODULE |
Diagnostic Test
1.INTERMITTENT CONDITIONDoes the Scan Tool read: B2328-WASHER FLUID LEVEL SENSOR INPUT CIRCUIT HIGH?
Yes
- Go To 2
No
- The condition that caused the symptom is currently not present. Inspect the related wiring for a possible intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires.
- Perform the BODY VERIFICATION TEST — VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
2.(W1) WASHER FLUID LEVEL SENSOR SIGNAL CIRCUIT SHORT TO VOLTAGE

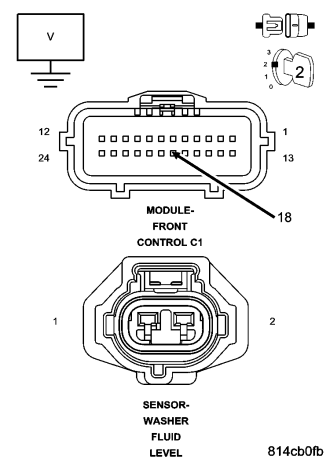

Is the voltage above 5.0 volts?
Yes
- Repair the (W1) Washer Fluid Level Sensor Signal circuit for a short to voltage.
- Perform the BODY VERIFICATION TEST — VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
No
- Replace the Front Control Module in accordance with the service information.
- Perform the BODY VERIFICATION TEST — VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
