B1A42-SECURITY TRANSMITTER SENSOR CIRCUIT SHORTED TOGETHER

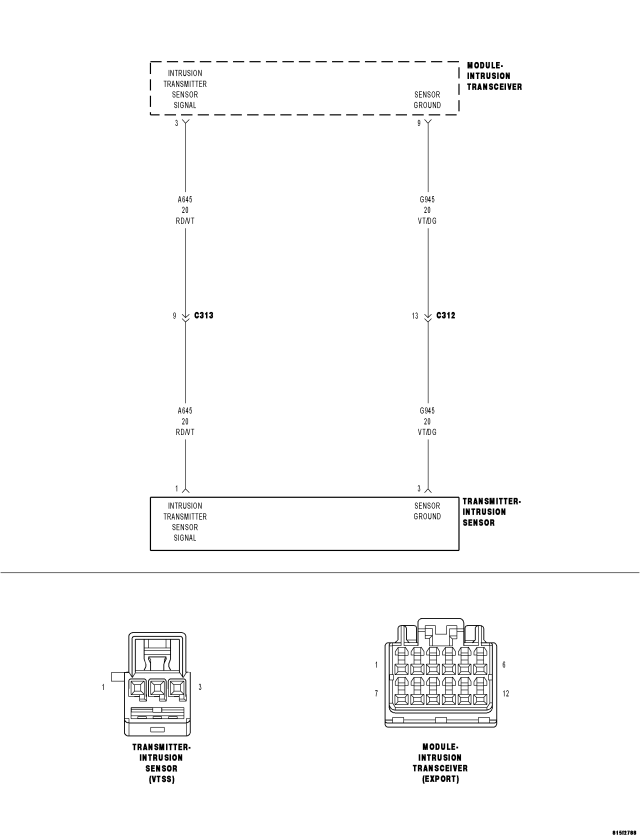

For a complete wiring diagram Refer to Section 8W.

When Monitored:
During the VTSS pre-arm process.
Set Condition:
If the voltage current is below a specified range this DTC will set.

Possible Causes

INTRUSION SENSOR TRANSMITTER

(A645) INTRUSION TRANSMITTER SENSOR SIGNAL SHORTED TO (G945) SENSOR GROUND

INTRUSION TRANSCEIVER MODULE

1.DETERMINING IF DTC IS CURRENT

NOTE: Diagnose any related Communication DTC(s) before continuing.

Does the DTC reset?

Yes

DTC is not active at this time. Test complete.
Perform BODY VERIFICATION TEST – VER 1 (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)

2.INTRUSION SENSOR TRANSMITTER

NOTE: Check connectors - Clean/repair as necessary.

Does the DTC reset?

Yes

Replace the original Intrusion Sensor Transmitter.
Perform BODY VERIFICATION TEST – VER 1 (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)

3.CHECK THE (A645) INTRUSION TRANSMITTER SENSOR SIGNAL WIRE FOR A SHORT TO (G945) SENSOR GROUND

Is the resistance below 5.0 ohms?

Yes

Repair the (A645) Intrusion Transmitter Sensor Signal circuit for a short to the (G945) Sensor Ground circuit.
Perform BODY VERIFICATION TEST – VER 1 (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)

Replace the Intrusion Transceiver Module in accordance with the Service Information.
Perform BODY VERIFICATION TEST – VER 1 (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
