B2313-WIPER ON/OFF CONTROL CIRCUIT LOW

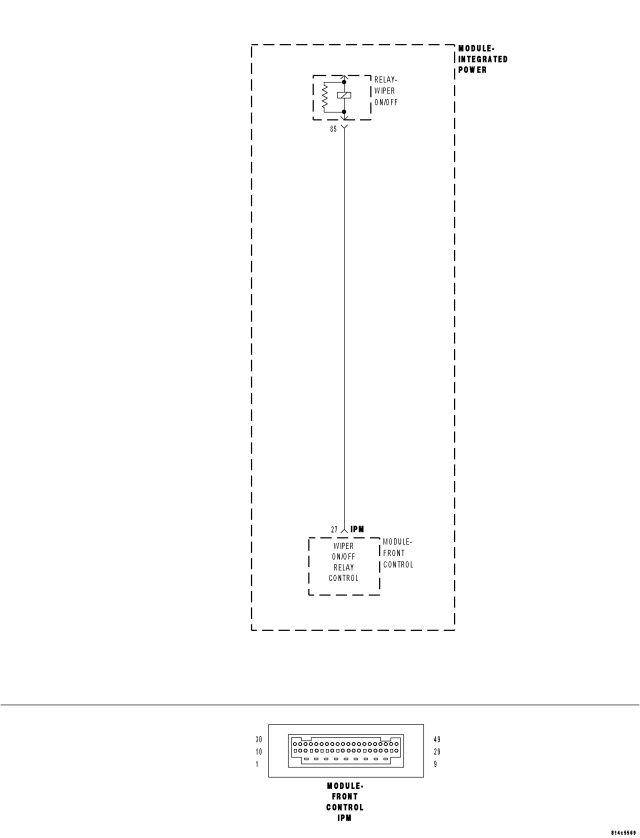

For a complete wiring diagram Refer to Section 8W.
- When Monitored:
- With the ignition on.
- Set Condition:
- When the FCM detects a short/low condition.
| Possible Causes |
| INTEGRATED POWER MODULE |
Diagnostic Test
1.A5 CIRCUIT OPENNOTE: Check all fuses and circuit breakers before proceeding with the diagnosis of this DTC.
Is the voltage above 10.0 volts?
Yes
- Go To 2
No
- Check the A5 circuit for an open.
- Perform the BODY VERIFICATION TEST — VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
2.WIPER ON/OFF RELAY
Does the Scan Tool read: B2313-WIPER ON/OFF CONTROL CIRCUIT LOW?
Yes
- Go To 3
No
- Replace the Wiper ON/OFF relay.
- Perform the BODY VERIFICATION TEST — VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
3.INTEGRATED POWER MODULE
Is the voltage above 10.0 volts?
Yes
- Replace the FCM in accordance with the service information.
- Perform the BODY VERIFICATION TEST — VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
No
- Replace the IPM in accordance with the service information.
- Perform the BODY VERIFICATION TEST — VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
