B1B94-PASSENGER SEAT TRACK POSITION SENSOR CIRCUIT HIGH





For a complete wiring diagram Refer to Section 8W.


  • When Monitored:

    While the CAN bus ignition status is in IGN_RUN and the module is configured for a Passenger Seat Track Position Sensor, the module checks the sensor input current ranges.

  • Set Condition:

    If the module detects that the sensor input is greater than or equal to 20.5 mA. This DTC may set when the current is between 17 mA and 20.5 mA.


Possible Causes

PASSENGER SEAT HARNESS IMPROPERLY ROUTED

PASSENGER SEAT HARNESS WIRES CHAFED, PIERCED, PINCHED, PARTIALLY BROKEN

PASSENGER SEAT HARNESS CONNECTOR TERMINALS BROKEN, BENT, PUSHED OUT, SPREAD, CORRODED, CONTAMINATED

(R262) PASSENGER SEAT POSITION SENSOR DATA CIRCUIT SHORTED TO VOLTAGE

(R264) PASSENGER SEAT POSITION SENSOR VOLTAGE CIRCUIT SHORTED TO VOLTAGE

(R262) PASSENGER SEAT POSITION SENSOR DATA CIRCUIT SHORTED TO (R264) PASSENGER SEAT POSITION SENSOR VOLTAGE CIRCUIT

PASSENGER SEAT TRACK POSITION SENSOR

OCCUPANT RESTRAINT CONTROLLER (ORC)




Diagnostic Test

1.CHECK FOR ACTIVE INTERNAL FAULTS, IGNITION FAULTS, AND BATTERY FAULTS IN THE OCCUPANT RESTRAINT CONTROLLER (ORC)

NOTE: Ensure battery is fully charged.




Does the scan tool display any active DTCs relating to internal faults, ignition faults, or battery faults?

Yes
  • Diagnose and repair the DTCs. Refer to the Table of Contents in this Section for a complete list of symptoms.


No
  • Go To 2

2.VERIFY THAT DTC B1B94-PASSENGER SEAT TRACK POSITION SENSOR CIRCUIT HIGH IS ACTIVE


Does the scan tool display active: B1B94-PASSENGER SEAT TRACK POSITION SENSOR CIRCUIT HIGH?

Yes
  • Go To 3


No
  • Go To 8

3.INSPECT PASSENGER SEAT HARNESS WIRES AND CONNECTORS

WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two minutes before proceeding.




Are any of these conditions present?

Yes

  • NOTE: Do not attempt to repair the Seat Harness. Replace the Seat Harness if the condition inspecting or testing for is present in the Seat Harness.

  • Replace the Passenger Seat Harness in accordance with the Service Information.
  • Perform *ORC VERIFICATION TEST - VER 1.


No
  • Go To 4

4.VERIFY THAT PASSENGER SEAT HARNESS IS ROUTED CORRECTLY



Is the Passenger Seat Harness routed correctly?

Yes
  • Go To 5


No
  • Reroute the Passenger Seat Harness as necessary.
  • Perform *ORC VERIFICATION TEST - VER 1.

5.CHECK FOR DTC B1B94-PASSENGER SEAT TRACK POSITION SENSOR CIRCUIT HIGH WITH PASSENGER SEAT TRACK POSITION SENSOR DISCONNECTED

WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two minutes before proceeding.



WARNING: To avoid personal injury or death, turn the ignition on, then reconnect the battery.




Does the scan tool display: B1B94-PASSENGER SEAT TRACK POSITION SENSOR CIRCUIT HIGH?

Yes
  • Go To 6


No

  • WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two minutes before proceeding.

    Replace the Passenger Seat Track Position Sensor in accordance with the service information.
  • Perform the *ORC VERIFICATION TEST-VER 1.

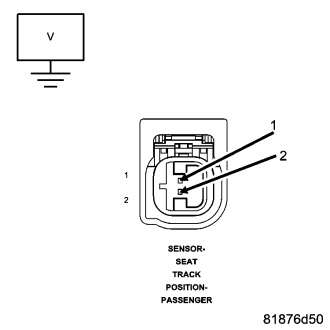

6.CHECK (R262) PASSENGER SEAT POSITION SENSOR DATA CIRCUIT AND (R264) PASSENGER SEAT POSITION SENSOR VOLTAGE CIRCUIT FOR A SHORT TO VOLTAGE


WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two minutes before proceeding.



WARNING: To avoid personal injury or death, turn the ignition on, then reconnect the battery.





Is the voltage above 0.2 volts on either circuit?

Yes

  • NOTE: Do not attempt to repair the Seat Harness. Replace the Seat Harness if the condition inspecting or testing for is present in the Seat Harness.

  • WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two minutes before proceeding.

    Replace the Passenger Seat Harness in accordance with the Service Information.
  • Perform the *ORC VERIFICATION TEST-VER 1.


No
  • Go To 7

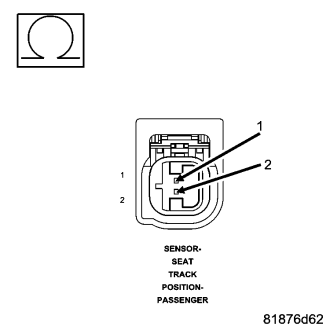

7.CHECK (R262) PASSENGER SEAT POSITION SENSOR DATA CIRCUIT FOR A SHORT TO (R264) PASSENGER SEAT POSITION SENSOR VOLTAGE CIRCUIT


WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two minutes before proceeding.




Is the resistance below 10k ohms?

Yes

  • NOTE: Do not attempt to repair the Seat Harness. Replace the Seat Harness if the condition inspecting or testing for is present in the Seat Harness.

  • Replace the Passenger Seat Harness in accordance with the service information.
  • Perform the *ORC VERIFICATION TEST-VER 1.


No
  • Replace the ORC in accordance with the Service information.
  • Perform the *ORC VERIFICATION TEST-VER 1.

8.TEST FOR AN INTERMITTENT CONDITION



WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two minutes before proceeding.






WARNING: To avoid personal injury or death, turn the ignition on, then reconnect the battery.



WARNING: To avoid personal injury or death, maintain a safe distance from all airbags while performing the following steps.






Are any ACTIVE DTCs present?

Yes
  • Select the appropriate symptom from Symptom List.


No
  • No problem found at this time. Erase all codes before returning vehicle to customer.
